Part Number: SID5R56C46MBD-E
OEM Chip Manufacturer: MICRON
Memory Technology: DDR5 SDRAM RDIMM
Number Of Modules: 1× 64GB
Memory Speed: 5600 MT/s
Data Integrity Check: ECC
Rank Features: 2Ranks 4096 M x 8-bit
Form Factor: DIMM
Pin Count: 288-pin
CAS Latency: CL46: Timing of 46-45-45 at 1.1V
Description

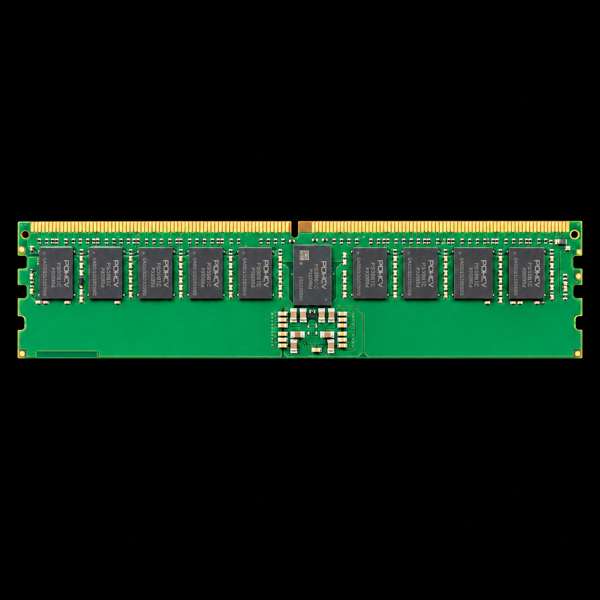

The SID5R56C46MBD-E is a 288-pin DDR5-5600 registered dual in-line memory module (RDIMM). Its Serial Presence Detect (SPD) is programmed for JEDEC-standard operation at 5600 MT/s, with CL46 latency, 46-45-45 timings, and a supply voltage of 1.1V.

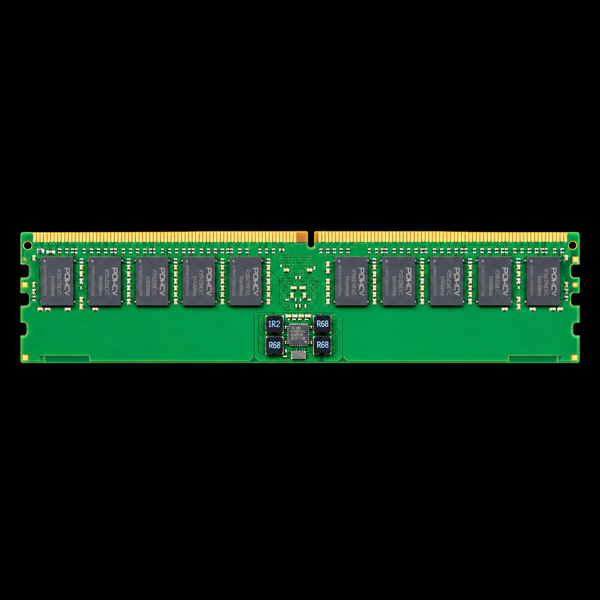

The module incorporates 32Gb CMOS DDR5 SDRAM devices in FBGA packages, one JEDEC-compliant DDR5 register driver, and one 8Kbit EEPROM in an 8-pin TDFN package. These components are mounted on a glass-epoxy printed circuit board designed for installation in a 288-pin DIMM socket.
The synchronous design enables precise cycle control using the system clock, while data transfers occur on both edges of the data strobe (DQS). Support for a range of operating frequencies, programmable latencies, and burst lengths makes the module suitable for a variety of high-bandwidth, high-performance memory applications.
Product datasheet: https://drive.google.com/file/d/1p4ACdyWby0xifgdcxUq1WMP128XAdGut/view?usp=sharing
